Product Details:
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | HLY |
| Certification: | CE/RoHS/UN38.3/MSDS/FCC/BIS |
| Model Number: | 2200mah 18650 Battery |
Payment & Shipping Terms:
| Minimum Order Quantity: | 400pcs/carton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100pcs/white box, 400pcs/carton, 43*23*17.5cm, 19kg |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 200,000 pcs per day |
Description
| Nominal Capacity: | 2200mAH | Nominal Voltage: | 3.6V |
|---|---|---|---|
| Weight: | 48g | Cycle Life: | 500Times |
| Warranty: | 12Month | OEM/ODM:: | Accepatable |
| Customization:: | Logo/Packaging/Graphic |

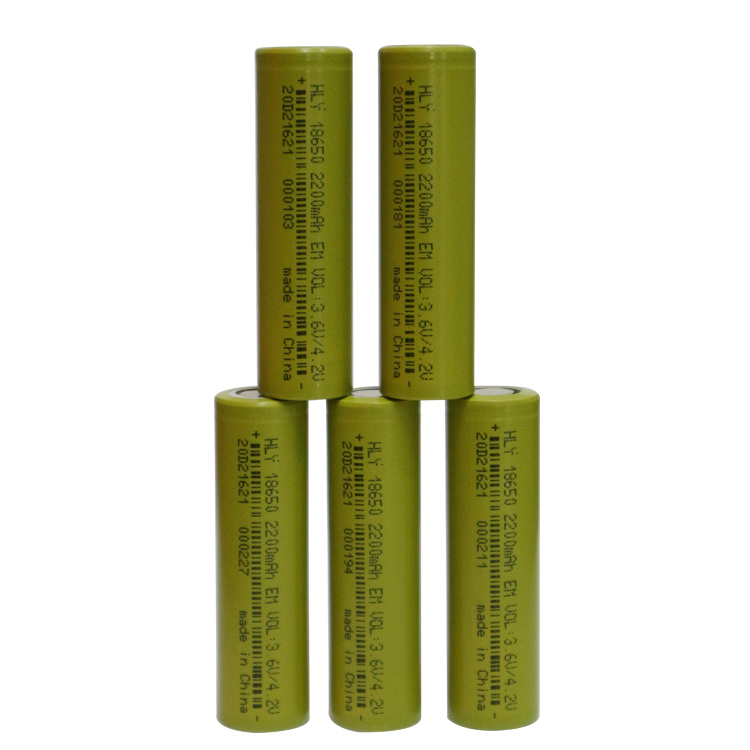

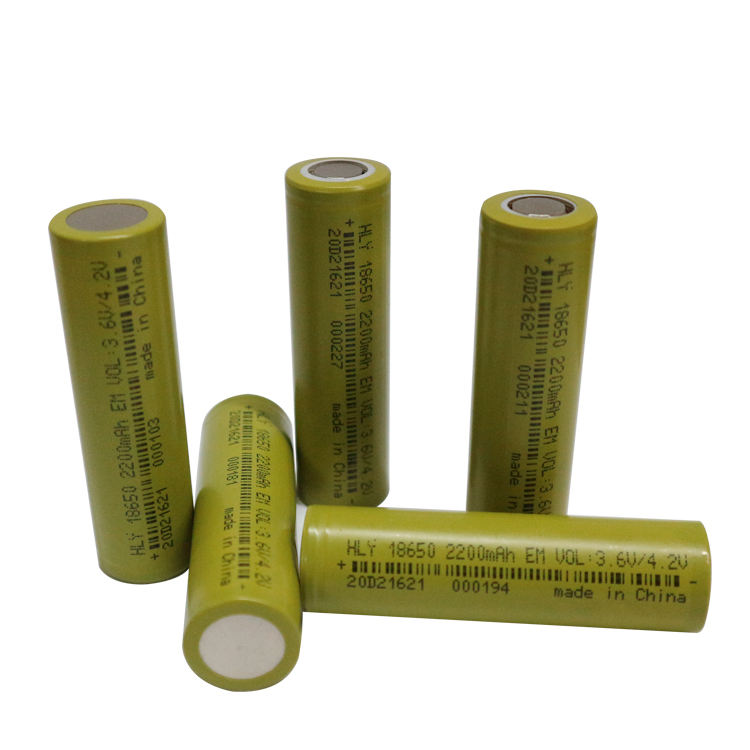

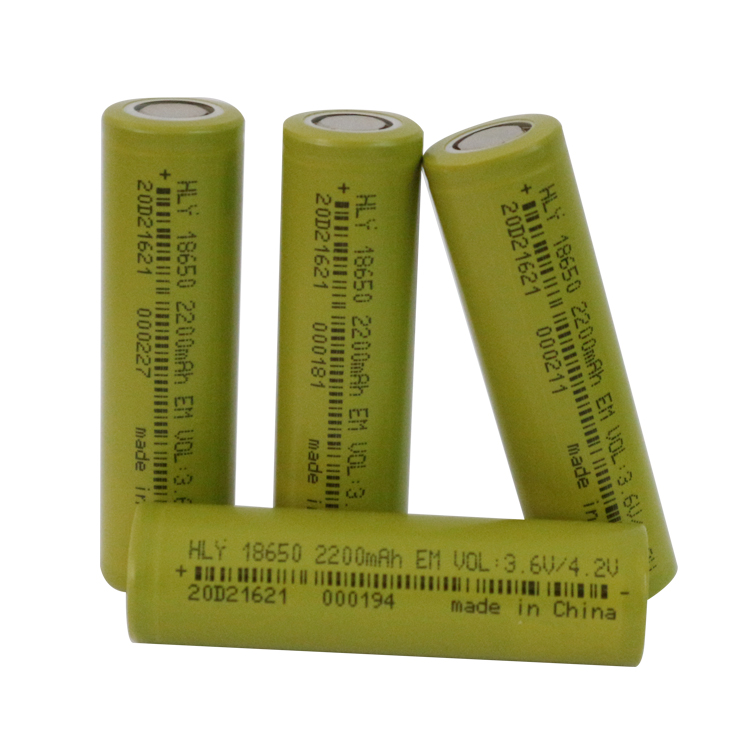

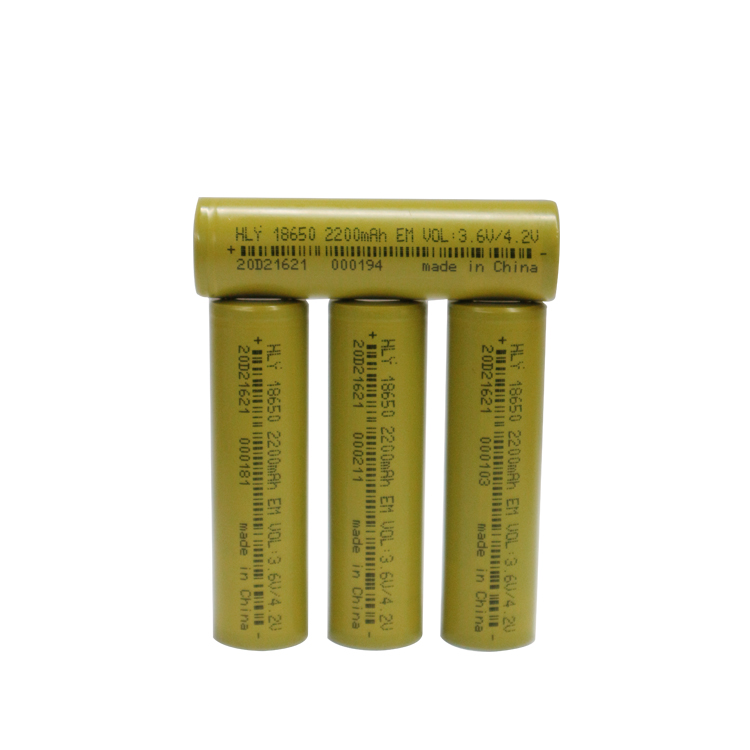

Factory High Rate 3.6v 2200mah 18650 Rechargeable Lithium Ion Batteries For E-Scooters
Specification
| ITEM | SPECIFICATION |
| Nominal capacity | 2200 mAh@0.5C |
| Minimum capactiy | 2150 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1100mA) |
| Standard discharge current | 5C (11000mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 8C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 10C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
cetification
Application field of lithium battery
| Application field of lithium battery | ||||
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
| EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) | Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| Electric bus/Medium bus (Hybrid and pure) | Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Shipping
Frequently asked questions
Q1: What about the quality of your battery?
A: We only produce safe, reliable and longetive battery, all products have passed the CE, RoHS certifications.
Q2: How to solve the technical problem?
A: 24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us.
Q3: Do you have MOQ for your batteries?
A: OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders.
Q4: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Q5: What is your production capacity?
A: Our production capacity can reach to 200,000 pcs per day.
