Product Details:
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | HLY |
| Certification: | CE/RoHS/UN38.3/MSDS/FCC/BIS |
| Model Number: | 18650 2600mAh Rechargeable Li-ion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 400pcs/carton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100pcs/white box, 400pcs/carton, 43*23*17.5cm, 19kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, L/C, Paypal |
| Supply Ability: | 200,000 pcs per day |
Description
| Battery Size: | 18.4*65.1mm | Weight: | 48g |
|---|---|---|---|
| Nominal Voltage: | 3.6V | Cycle Life: | 500 Times |
| Internal Resistance: | ≤22mΩ (AC Impedance, 1000Hz) | Warranty: | 5 Year |
| OEM/ODM: | Accepatable | Product Certifications: | CE |
| Main Markets: | South Asia 14.75%, Mid East 9.84%, North America 8.85% | ||
| High Light: | UN38.3 Small Cylinder Battery,3.6Volt Small Cylinder Battery,2600mAh Solar Light Rechargeable Batteries | ||

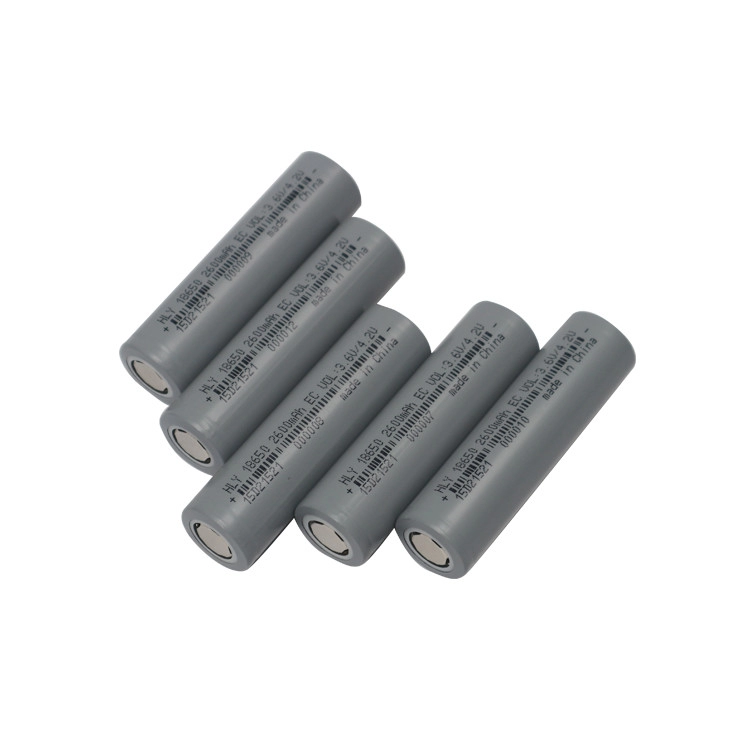

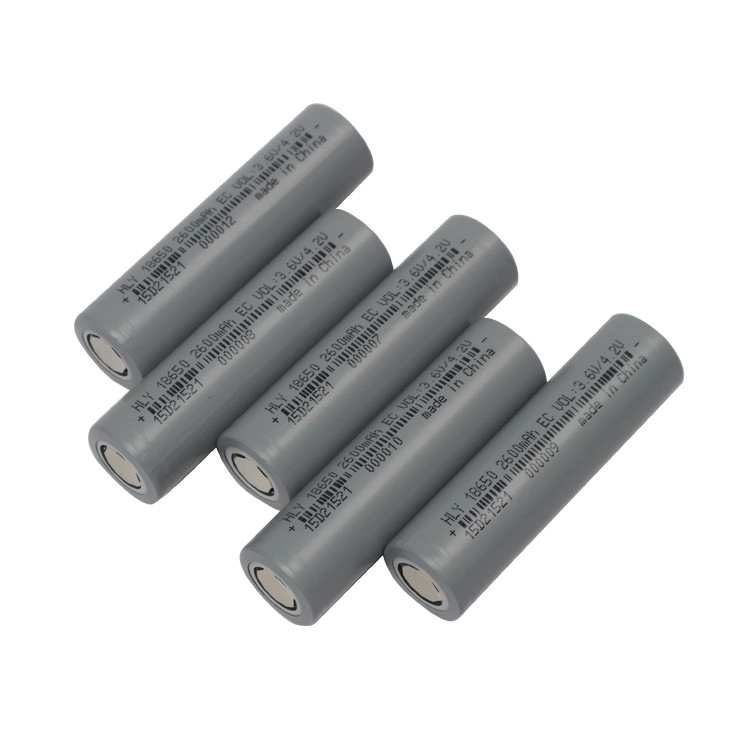

Manufacturer BIS Certification 3.6V 18650 2600mAh High Rate Lithium Ion Battery Cell
PRODUCT DESCRIPTION
Battery Features:
1. Light, small, large capacity, high energy density and long cycle life.
2. High safety, over charge and over discharge protection, meeting international safety standards, such as CE, RoHS, UN38.3, MSDS, FCC, BIS etc.
3. Wide operating temperature range, stable performance under high and low temperature.
4. A variety of battery cell types for choice, suitable for many different product fields.
5. Independent research, design and development, can be customized as per customers' product requirements.
Applications:
| Application field of lithium battery | ||||
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Battery-operated motor cycle; Electric motorcycle; E-scooter | Grid peak regulation power supply | Lithium battery power supply for outdoor integrated base station | Starting power source (starting power source for automobile, motorcycle, railway diesel locomotive, electric locomotive, bus, etc.) | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
| EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) | Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| Electric bus/Medium bus (Hybrid and pure) | Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2600 mAh@0.5C |
| Minimum capactiy | 2600 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1300mA) |
| Standard discharge current | 1C (2600mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
How to choose a high quality lithium battery?
1. A grade battery cell, with full capacity for each battery cell.
2. BMS: water proof, antistatic, over current protection, over voltage protection, with sealed case.
3. Water proof case, plastic or steel case available by customer's requirement.
4. High grade raw material.
5. 12 hours & 3 cycles charging/discharging test.
| Frequently asked questions | ||
| No. | Questions | Answers |
| 1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery. |
| 2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs. |
| 3 | Can I have a sample order for battery? | Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable. |
| 4 | What is your production capacity? | Our production capacity can reach to 200,000 pcs per day. |
| 5 | How do you ship the goods and how long does it take to arrive? | DHL, UPS, FedEx or TNT for samples. Shipping time depends on the way you choose. Airline and sea shipping also optional. |
| 6 | What about the quality of your battery? | We only produce safe, reliable and longetive battery, all products have passed the CE, RoHS certifications. |
| 7 | How to solve the technical problem? | 24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us. |
