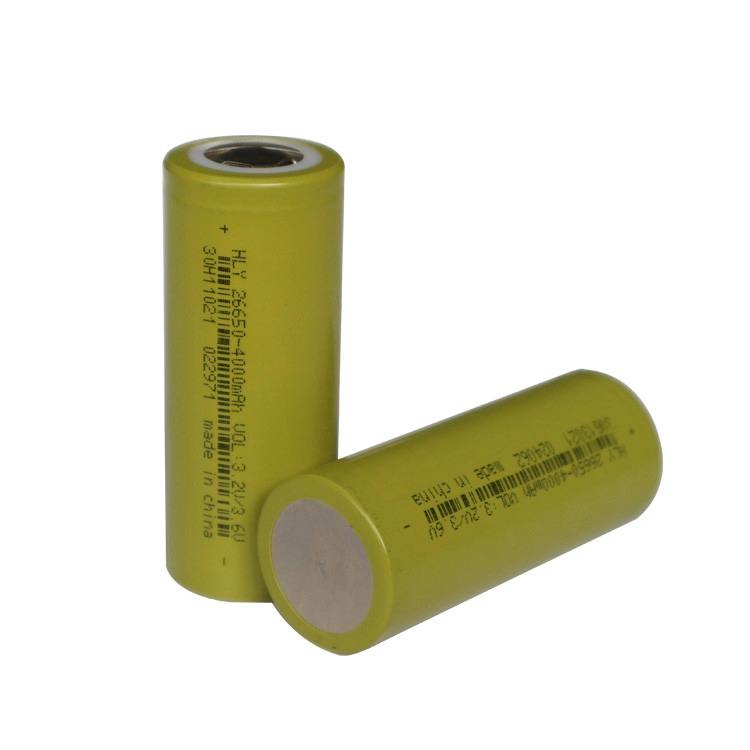

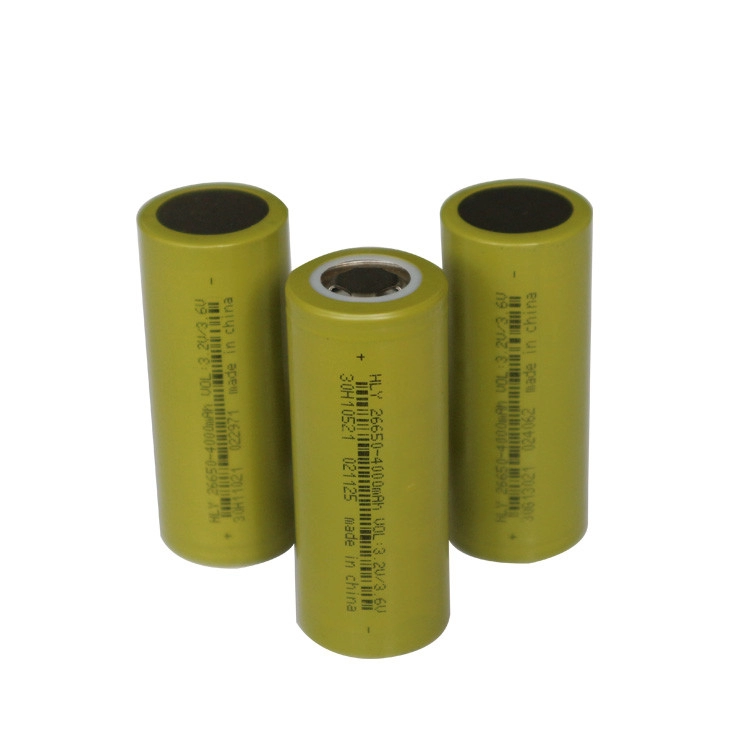

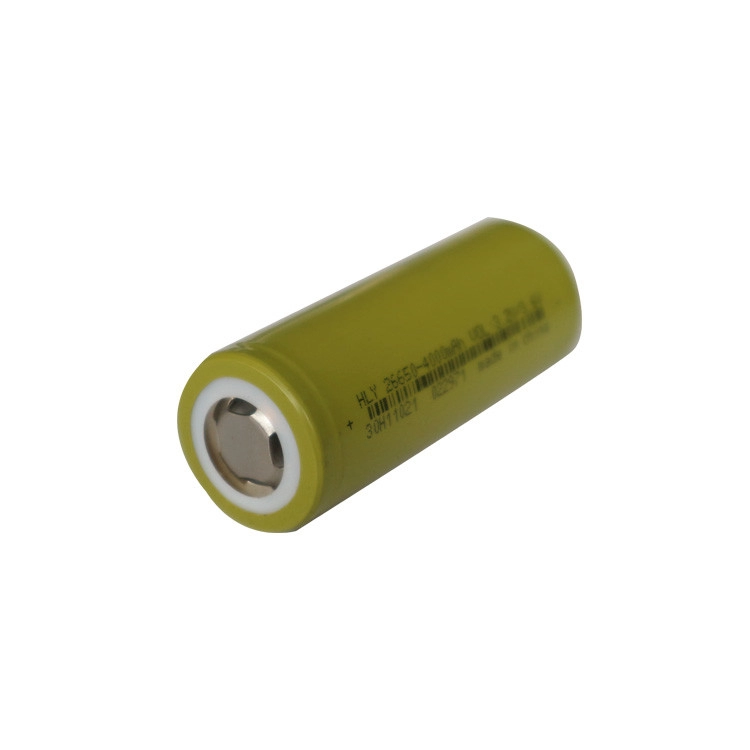

High Rate Deep Cycle Lithium Ion 26650 4000mah Battery 3.2 Volt For Electric Vehicles

High Rate Deep Cycle Lithium Ion 26650 4000mah Battery 3.2 Volt For Electric Vehicles_0 High Rate Deep Cycle Lithium Ion 26650 4000mah Battery 3.2 Volt For Electric Vehicles_1 High Rate Deep Cycle Lithium Ion 26650 4000mah Battery 3.2 Volt For Electric Vehicles_2

Product Details:

Place of Origin:Jiangxi, China
Brand Name:HLY
Certification:CE/RoHS/UN38.3/MSDS/FCC/BIS
Model Number:26650 4000mAh Rechargeable Li-ion

Payment & Shipping Terms:

Minimum Order Quantity:192pcs/carton
Price:Negotiable
Packaging Details:48pcs/white box, 192pcs/carton, 33*25*15.5cm, 18.5kg
Delivery Time:7-15 days
Payment Terms:T/T, L/C, Paypal
Supply Ability:200,000 pcs per day

Description

Battery Type:26650 Rechargeable Li-ionBattery Size:26.5*65.5mm
Weight:88±2gNominal Voltage:3.2V
Cycle Life:2000 TimesOEM/ODM:Accepatable
Customization:Logo/Packaging/GraphicDischarge Current:3C
High Light:

Electric Vehicles 26650 4000mah Battery

26650 4000mah Battery 3.2 volt

26650 high rate battery


3.2V Deep Cycle High Rate Lithium Ion 26650 4000mah Battery For Electric Vehicles



PRODUCT DESCRIPTION



Battery Features:



I. Light, small, low current, large capacity, high rate capability, high energy density and long cycle life.



II. High safety, over charge and over discharge protection, we have got many prodcuts certificates, such as CE, RoHS, UN38.3, MSDS, FCC, BIS etc, to meet the international standards.



III. Wide operating temperature range, max recommended charge cell body temperature is from 10℃to 60℃and discharge’s is from 0℃ to 60℃, stable performance under high and low temperature.



IV. A variety of battery battery types for choice, like 26650 Li-ion battery 4000mAh, 5000mAh, suitable for many different product fields, meet your different demands.



V. Independent R&D, can be customized as per customers' product requirements, like printing logo, customized packaging and graphic.



High Rate Deep Cycle Lithium Ion 26650 4000mah Battery 3.2 Volt For Electric Vehicles 0



Applications:



Application field of lithium battery
Traffic Power SourceElectric Energy Storage Power SourceMobile Communication Power SupplyNew energy storage power supplyAerospace Military Power Supply
Electric bicycleLarge solar/wind energy storage systemAcer station integrated lithium battery power supplySolar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lampPower supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.)
Battery-operated motor cycle;
Electric motorcycle;
E-scooter
Grid peak regulation power supplyLithium battery power supply for outdoor integrated base stationStarting power source (starting power source for automobile, motorcycle, railway diesel locomotive, electric locomotive, bus, etc.)Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments)
EV;
Electric vehicles;
Cell-driven vehicles
(Hybrid and pure)
Special uninterruptible power supply system for powerMarginal network base station lithium battery power supplyPower tools (drill, grinder, electric nuts, etc.)Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.)



High Rate Deep Cycle Lithium Ion 26650 4000mah Battery 3.2 Volt For Electric Vehicles 1



Specification:



ITEMSPECIFICATION
Nominal capacity4000 mAh@0.5C
Minimum capactiy

3960 mAh@0.5C

(Discharge the cell from 3.6V to 2.0V by 0.5C current)

Nominal voltage3.2V
Charging voltage3.65 ± 0.05 V
Discharg ending voltage2.00 ± 0.05 V
Standard charge current0.5C (2000mA)
Standard discharge current1C (4000mA)
Max charge current

1C (T ≥ 10℃)

0.2C (10℃>T≥0℃)

Max continuous discharge current3C (27℃ ≥ T ≥ 23℃)
Max pulse discharge current5C (27℃ ≥ T ≥ 23℃)
Max recommended charge and discharge cell body temperature

Charge:10~60℃

Discharge: 0~60℃

Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life.

Charge:60℃

Discharge: 75℃

Internal resistance≤22mΩ (AC Impedance, 1000Hz)
Cell dimension

Height: 65.5 mm

Diameter: 26.5 mm

Weight88 ± 2g





How to choose a high quality lithium battery?



1. A grade battery cell, with full capacity for each battery cell.

2. BMS: water proof, antistatic, over current protection, over voltage protection, with sealed case.

3. Water proof case, plastic or steel case available by customer's requirement.

4. High grade raw material.

5. 12 hours & 3 cycles charging/discharging test.



High Rate Deep Cycle Lithium Ion 26650 4000mah Battery 3.2 Volt For Electric Vehicles 2



Payment&Packaging:

High Rate Deep Cycle Lithium Ion 26650 4000mah Battery 3.2 Volt For Electric Vehicles 3

High Rate Deep Cycle Lithium Ion 26650 4000mah Battery 3.2 Volt For Electric Vehicles 4



Partner relationship:

High Rate Deep Cycle Lithium Ion 26650 4000mah Battery 3.2 Volt For Electric Vehicles 5



Frequently asked questions
No.QuestionsAnswers
1Are you a factory or company?Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery.
2Do you have MOQ for your batteries?OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs.
3Where can I get the price?We usually quote within 24 hours after we get your inquiry.
4Can I print my own logo on the product?Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample.
5What about the lead time?Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days.
6What's the payment term?T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the rest paid before shipping.
7How to solve the technical problem?24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us.
