Product Details:
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | HLY |
| Certification: | CE/RoHS/UN38.3/MSDS/FCC/BIS |
| Model Number: | 26650 4000mAh Rechargeable Li-ion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 192pcs/carton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 48pcs/white box, 192pcs/carton, 33*25*15.5cm, 18.5kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, L/C, Paypal |
| Supply Ability: | 200,000 pcs per day |

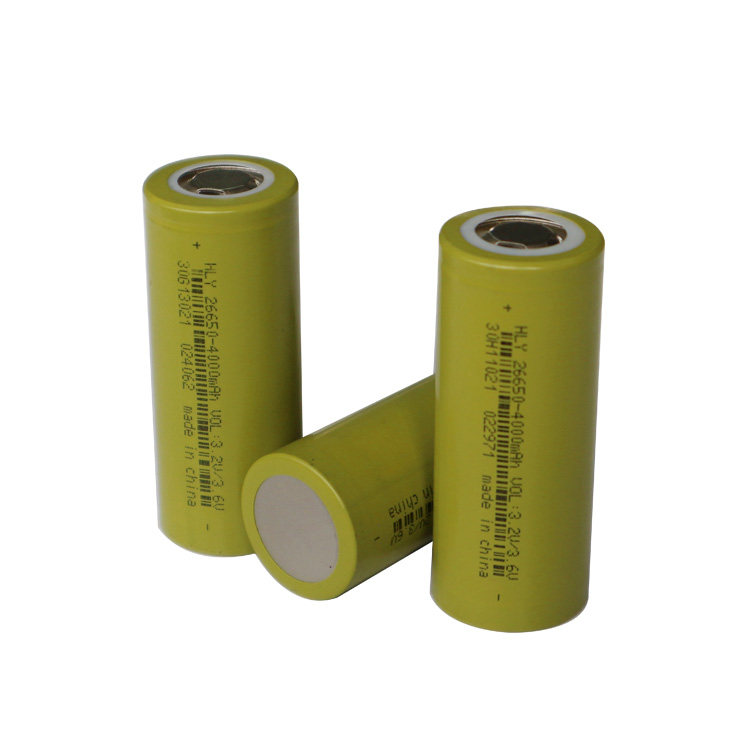

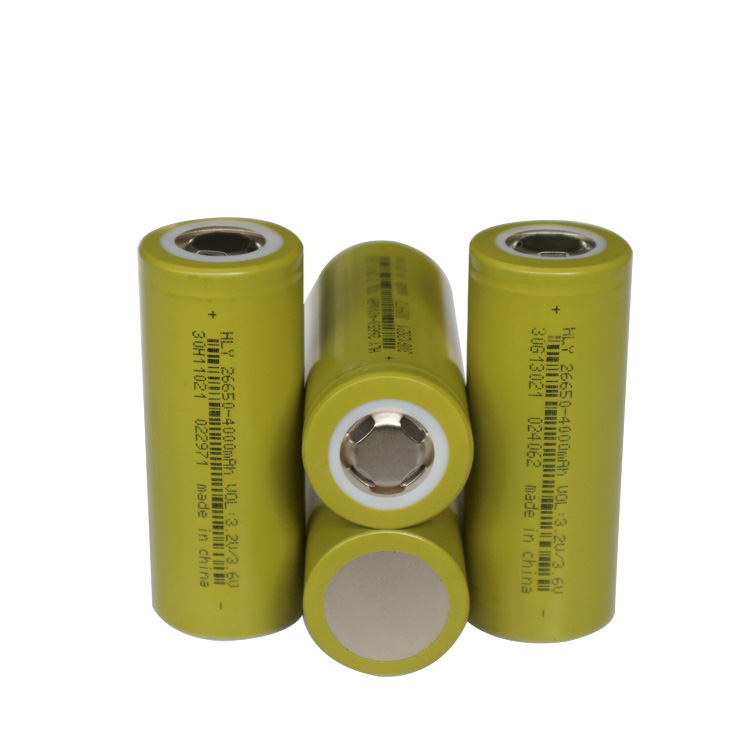

OEM / ODM Lithium NCM Cylindrical Battery Cells 4000mAh 3.6v Large Capacity
Description
| Battery Type: | 26650 Rechargeable Li-ion | Battery Size: | 26.5*65.5mm |
|---|---|---|---|
| Weight: | 91±3g | Nominal Voltage: | 3.2V |
| Cycle Life: | 2000 Times | OEM/ODM: | Accepatable |
| Protection: | Trade Assurance, On-time Dispatch Guarantee, Refund Policy | Main Markets: | South Asia 14.75%, Mid East 9.84%, North America 8.85% |
| High Light: | ODM Cylindrical Battery Cells,Cylindrical Battery Cells 4000mAh,OEM lithium nmc cells | ||
PRODUCT DESCRIPTION
Battery Features:
1. Light, small, large capacity, high energy density and long cycle life.
2. High safety, over charge and over discharge protection, meeting international safety standards, such as CE, RoHS, UN38.3, MSDS, FCC, BIS etc.
3. Wide operating temperature range, stable performance under high and low temperature.
4. A variety of battery cell types for choice, suitable for many different product fields.
5. Independent research, design and development, can be customized as per customers' product requirements.
| Application field of lithium battery | ||||
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
| Battery-operated motor cycle; Electric motorcycle; E-scooter | Grid peak regulation power supply | Communication building 336V HVDC data center backup power | Electric model, airplane model | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
| EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) | Special uninterruptible power supply system for power | Renewable energy (lithium iron battery + photovoltaic +...) Base station power supply | Electric robot; Electromotive robot | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| Electric special vehicle: Electric golf car, electric sightseeing car, electric engineering car, electric sweeper, electric forklift, police patrol car, electric balance car | Photovoltaic off-grid and grid-connected energy storage power station system | FTTX lithium battery backup | Electric lawn mowers, electric fishing traps, etc | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Specification
| ITEM | SPECIFICATION |
| Normal capacity | 4000 mAh@0.5C |
| Minimum capactiy | 3960 mAh@0.5C (Discharge the cell from 3.6V to 2.0V by 0.5C current) |
| Normal voltage | 3.2V |
| Charging voltage | 3.65 ± 0.05 V |
| Discharg ending voltage | 2.00 ± 0.05 V |
| Standard charge current | 0.5C (2000mA) |
| Standard discharge current | 1C (4000mA) |
| Max charge current | 1C (T ≥ 10℃) 0.2C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge:10~60℃ Discharge: 0~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. | Charge:60℃
Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
How to choose a high quality lithium battery?
1. A grade battery cell, with full capacity for each battery cell.
2. BMS: water proof, antistatic, over current protection, over voltage protection, with sealed case.
3. Water proof case, plastic or steel case available by customer's requirement.
4. High grade raw material.
5. 12 hours & 3 cycles charging/discharging test.
Why choose us?
1. We founded in 2013, have about 10 years experience in the field of Lithium Ion Battery.
2. We have 400 professsional workers and 20 R&D engineers.
3. We have an industrial park of 23,000 square meters and more than 100 patented technologies and more than 200 sets of high-precision instruments.
4. We got 8 China excellent patent awards.
5. We cooperate with Chinese Academy of Sciences(CAS) to research and develop new product Sodium Ion(Na+).
| Frequently asked questions | ||
| No. | Questions | Answers |
| 1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery. |
| 2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs. |
| 3 | Where can I get the price? | We usually quote within 24 hours after we get your inquiry. |
| 4 | Can I have a sample order for battery? | Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable. |
| 5 | Can I print my own logo on the product? | Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample. |
| 6 | What is your production capacity? | Our production capacity can reach to 200,000 pcs per day. |
| 7 | What about the lead time? | Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days. |
| 8 | How do you ship the goods and how long does it take to arrive? | DHL, UPS, FedEx or TNT for samples. Shipping time depends on the way you choose. Airline and sea shipping also optional. |
| 9 | What's the payment term? | T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the rest paid before shipping. |
| 10 | What about the quality of your battery? | We only produce safe, reliable and longetive battery, all products have passed the CE, RoHS certifications. |
| 11 | How to solve the technical problem? | 24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us. |
