Product Details:
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | HLY |
| Certification: | CE/RoHS/UN38.3/MSDS/FCC/BIS |
| Model Number: | 18650 Battery 2200mah |
Payment & Shipping Terms:
| Minimum Order Quantity: | 400pcs/carton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100pcs/white box, 400pcs/carton, 43*23*17.5cm, 19kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, L/C, Paypal |
| Supply Ability: | 200,000 pcs per day |
Description
| Nominal Capacity: | 2200mAh | Application: | EV,Flashlight,Solar Storage System,electric Ebike,Electric Vehicles |
|---|---|---|---|
| Weight: | 48g | Shape: | Cylindrical |
| Usage: | Power For Flashlight | Advantage: | Longer Cycle Life,can Be Customized |

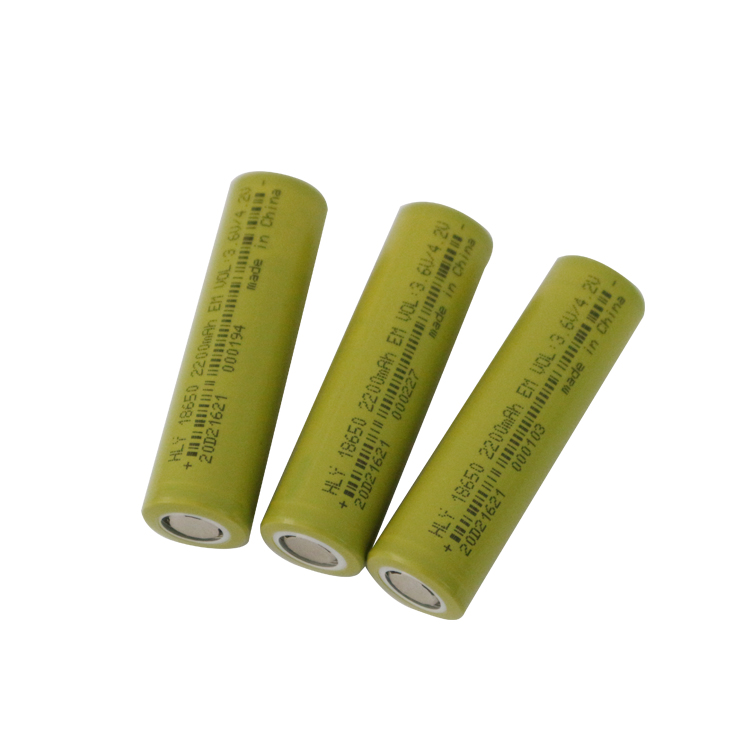

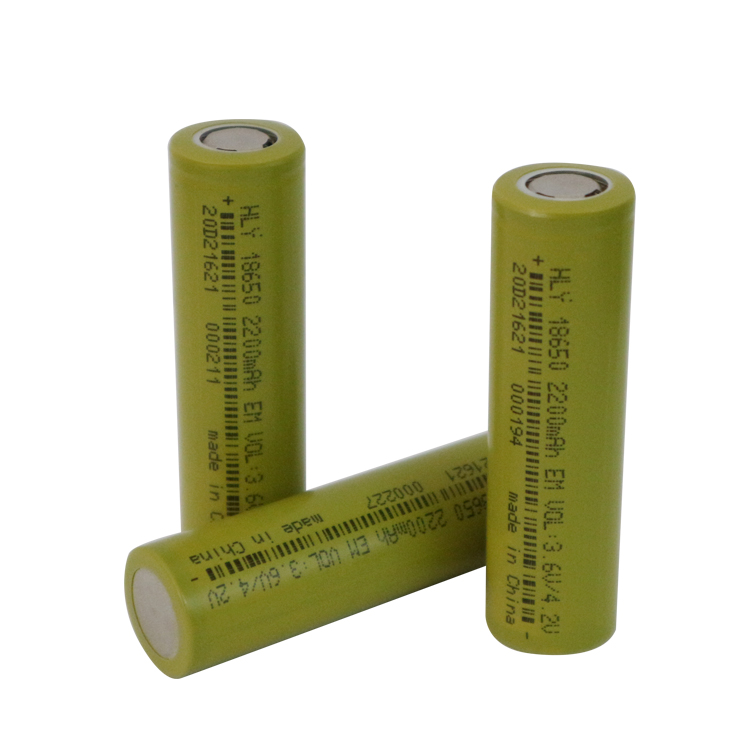

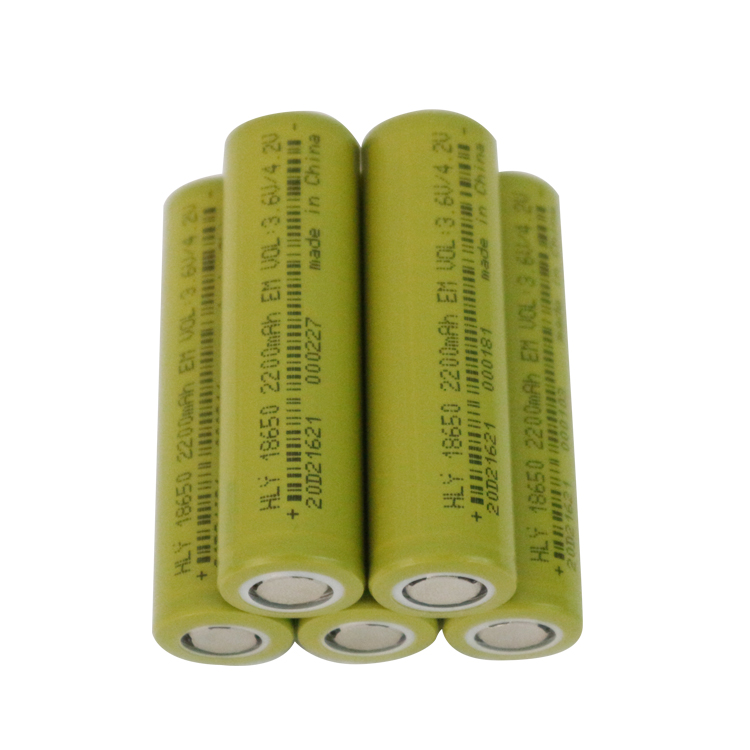

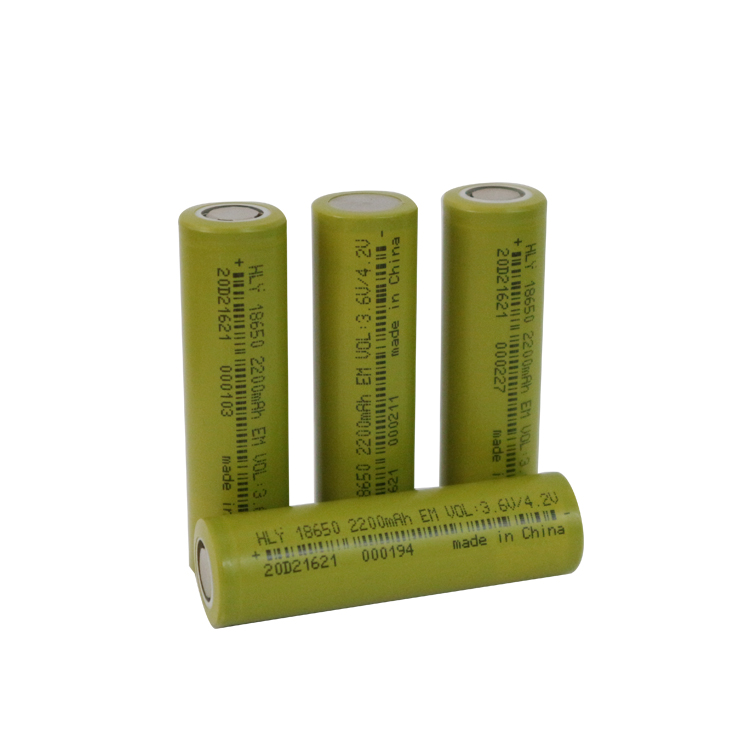

Customized Rechargeable Litium Battery 3.6v 2200mah 18650 Li Ion Battery Cell
Application:
| Application field of lithium battery | |||||
| No. | Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| 1 | Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
| 2 | Battery-operated motor cycle; Electric motorcycle; E-scooter | Grid peak regulation power supply | Lithium battery power supply for outdoor integrated base station | Starting power source (starting power source for automobile, motorcycle, railway diesel locomotive, electric locomotive, bus, etc.) | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
| 3 | EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) | Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| 4 | Electric bus/Medium bus (Hybrid and pure) | Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2200 mAh@0.5C |
| Minimum capactiy | 2150 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1100mA) |
| Standard discharge current | 1C (2200mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 8C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 10C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
Certifications:
Company profile:
FAQ:
Q1: Are you a factory or company?
A: We are a factory and trading company with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery.
Q2: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Q3: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality, samples are free. Mixed samples are acceptable.
Q4: Do you have MOQ for your batteries?
A: MOQ of OEM orders is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs.
Q5: What about the lead time?
A: Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days.
Q6: How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. Shipping time depends on the way you choose. Airline and sea shipping also optional.
Q7: What's the payment term?
A: T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the rest paid before shipping.
