Product Details:
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | HLY |
| Certification: | CE/RoHS/UN38.3/MSDS/FCC/BIS |
| Model Number: | 18650 Battery 2600mah |
Payment & Shipping Terms:
| Minimum Order Quantity: | 400pcs/carton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100pcs/white box, 400pcs/carton, 43*23*17.5cm, 19kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, L/C, Paypal |
| Supply Ability: | 200,000 pcs per day |
Description
| Application: | EV,Flashlight,Solar Storage System,electric Ebike,Electric Vehicles | Weight: | 48g |
|---|---|---|---|
| Certification: | Ce，bis | Oem: | Yes |
| Product Name: | Lithium Ion Battery | Battery Type: | Lithium Ion Battery Pack 1850 Cells |
| Shape: | Cylindrical | Advantage: | Longer Cycle Life,can Be Customized |
| High Light: | 18650 2600mah Rechargeable Battery,Electric Scooters 2600mah Rechargeable Battery,BIS Certified Lithium Ion Battery Cell | ||

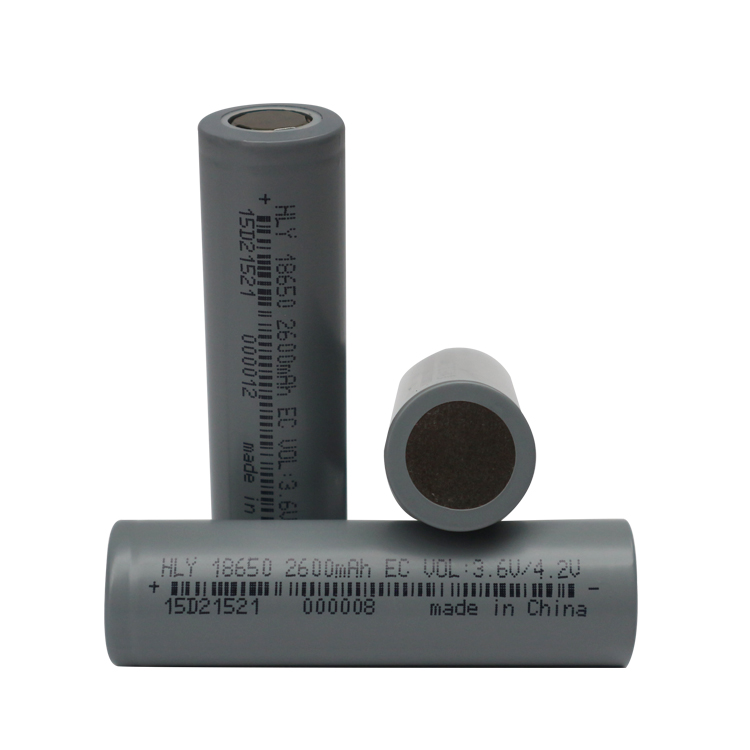

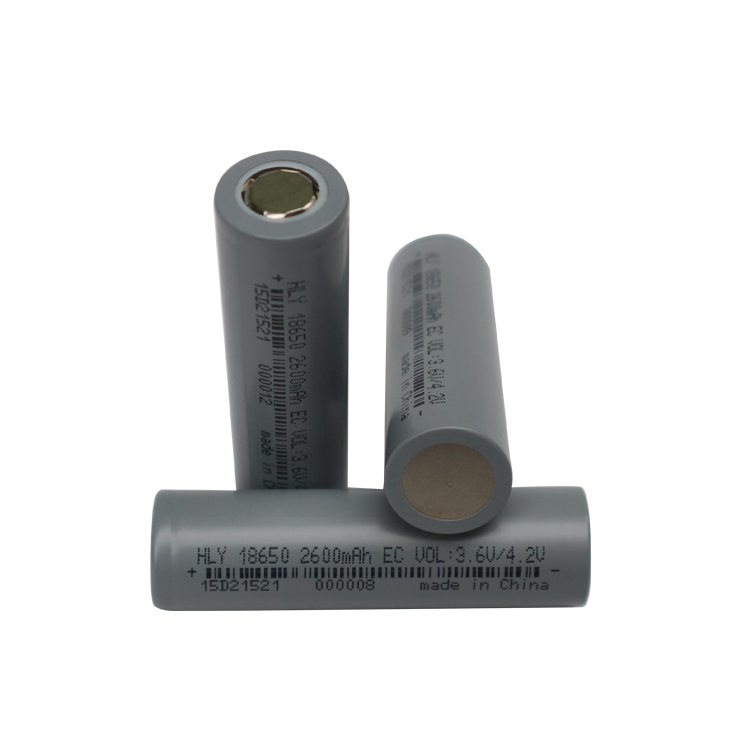

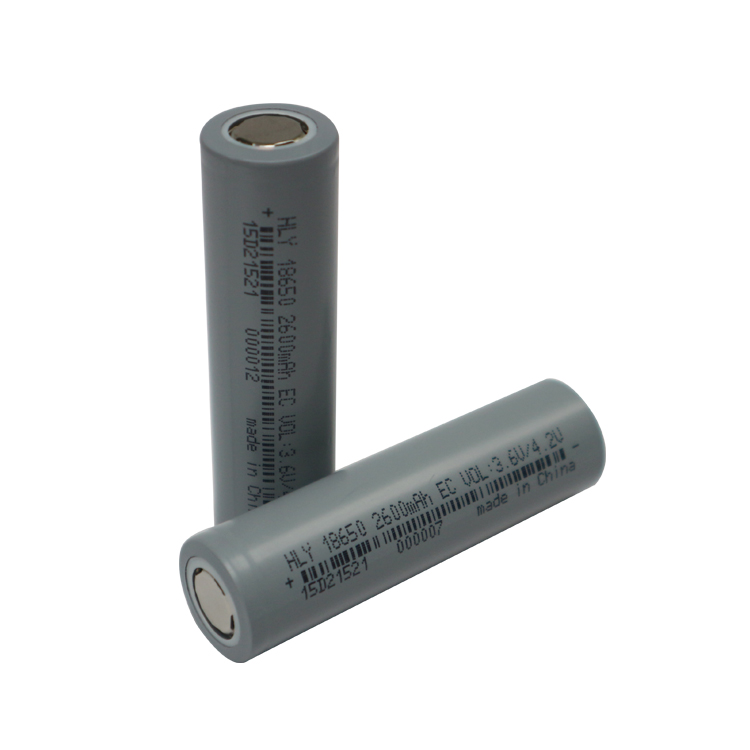

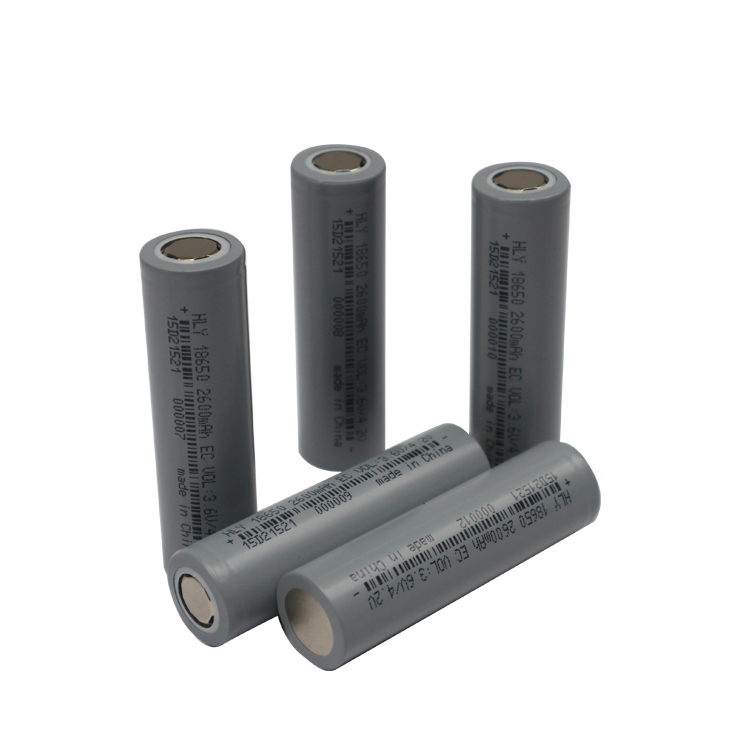

Deep Cycle lithium 18650 3.7Volt 2600mah rechargeable battery for Electric Scooters
PRODUCT DESCRIPTION
Battery Features:
I. Light, small, low current, large capacity, high rate capability, high energy density and long cycle life.
II. High safety, over charge and over discharge protection. When overcharge and discharge, crush, short circuit and heavy impact, there is no flame, no fire, and no explode, meeting international safety standards, such as CE, RoHS, UN38.3, MSDS, FCC, BIS etc.
III. Wide operating temperature range, max recommended charge cell body temperature is from 10℃to 60℃ and discharge’s is from 0℃ to 60℃, stable performance under high and low temperature. When the temperature of the cell is 150 degrees, cell must not fire or explode in 30 minutes.
Applications:
| Application field of lithium battery | ||||
| Traffic Power Source | Electric Energy Storage Power Source | Mobile Communication Power Supply | New energy storage power supply | Aerospace Military Power Supply |
| Electric bicycle | Large solar/wind energy storage system | Acer station integrated lithium battery power supply | Solar street lamp, lawn lamp, mine lamp, emergency lamp, garden lamp, high pole lamp | Power supply for large ships (airline, war ship, large cruise ship, cargo ship, etc.) |
| Battery-operated motor cycle; Electric motorcycle; E-scooter | Grid peak regulation power supply | Lithium battery power supply for outdoor integrated base station | Starting power source (starting power source for automobile, motorcycle, railway diesel locomotive, electric locomotive, bus, etc.) | Power supply for aircraft (power supply for large civil aircraft, commercial aircraft, helicopter, fighter aircraft and other flight instruments) |
| EV; Electric vehicles; Cell-driven vehicles (Hybrid and pure) | Special uninterruptible power supply system for power | Marginal network base station lithium battery power supply | Power tools (drill, grinder, electric nuts, etc.) | Space vehicle power supply system (space shuttle, satellite, rocket, missile, etc.) |
| Electric bus/Medium bus (Hybrid and pure) | Integrated power system | Non-physical site lithium battery backup power | Battery-operated toy | Military armor, power supply for civil large excavation equipment (tank, armored vehicle, military large armored vehicle, civil large excavation equipment, large crane, etc.) |
Specification
| ITEM | SPECIFICATION |
| Nominal capacity | 2600 mAh@0.5C |
| Minimum capactiy | 2600 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1300mA) |
| Standard discharge current | 1C (2600mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |
| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
How to choose a high quality lithium battery?
1. A grade battery cell, with full capacity for each battery cell.
2. BMS: water proof, antistatic, over current protection, over voltage protection, with sealed case.
3. Water proof case, plastic or steel case available by customer's requirement.
4. High grade raw material.
5. 12 hours & 3 cycles charging/discharging test.
| Frequently asked questions | ||
| No. | Questions | Answers |
| 1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery. |
| 2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs. |
| 3 | Where can I get the price? | We usually quote within 24 hours after we get your inquiry. |
| 4 | What is your production capacity? | Our production capacity can reach to 200,000 pcs per day. |
| 5 | What about the lead time? | Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days. |
| 6 | What's the payment term? | T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the rest paid before shipping. |
| 7 | How to solve the technical problem? | 24 hours after-service consultancy just for you. If you meet any problem, please don't hesitate to contact us. |
